How to Backup Oracle Database with Bacula? Oracle Backup and Recovery Technical Overview.

  • November 17, 2018

Oracle backup

Oracle Backup and Recovery with Bacula Enterprise through SBT Plugin.

Essentially a copy of your important data that you’re keeping separately from the original to restore it in case of all kinds of data loss is called a data backup. Any business has some sort of data that they need to protect and don’t want to lose - that includes Oracle database users, as well. Data loss is the main reason why you need to have a backup to keep your Oracle database environment reliable and secure.

Most of the companies using Oracle prefer to have a separate person to manage their Oracle backup operations - this position is called a “backup administrator”. Typically, this person would be tasked with a number of duties, including:

  • Working out a proper backup schedule;
  • Being ready to solve problems that can arise in relation to the whole backup and recovery process;
  • Both thinking through and testing different situations with different kinds of possible hardware or software failures related to data loss;
  • Not directly related to the backup process but still possible tasks are data preservation and data transfer;
  • Being ready to recover in case of data loss of any scale.

Speaking of Oracle database loss, a wide variety of possible reasons for that is the best way of proving that taking Oracle backups is a good thing in general. For example, the cause of data loss can be either:

  • Hardware crash;
  • Accidents with mishandling data;
  • Data corruption because of a virus;
  • Errors in the process of data migration from one device or system to another, etc.

There are many ways to backup Oracle database. Clustered modes provide resilience to hardware issues, and highly available, cloud, and converged infrastructures offer new options for data assurance and freedom along with redundancy. However, Oracle backup remains a critical issue in order to ensure that a small mistake, corruption, or hack doesn't destroy the critical data residing on even the best infrastructure. Database servers remain a key component of most organizations, and often contain the most critical information for the continuity of operations. The guide that follows will show you how to execute Oracle backup and recovery using RMAN's SBT functionality, which allows data to stream directly to Bacula Enterprise Edition.

Possible Types of Oracle Backup and Recovery

There are two methods to backup Oracle database:

  • Bacula managed backup using Oracle dump mode. This is quick and easy to set up, but is limited in scope to smaller databases and does not support point-in-time recovery or incremental backups.
  • RMAN managed backup (Oracle SBT mode). Also known as Oracle Recovery Manager (RMAN), it is an original Oracle database server feature, meaning there’s no need to install it manually - it’s already included on the server side. This mode uses the excellent RMAN backup tool and APIs to allow Bacula to initiate more advanced backup modes that support PITR, incremental and differential database backups, and can take advantage of RMAN’s change tracking feature to improve incremental backup performance. It’s also the most user-friendly since RMAN uses one interface for all of the operating systems which makes it a lot less complicated.

Since RMAN-based backup type is the preferred solution, here are some of the most noticeable advantages of using it:

  • Binary compression. This type of compression mechanism is integrated in the Oracle database as a system and its main purpose is to reduce the overall size of an average backup.
  • Automated database duplication. A number of features implemented in Oracle allows for easy creation of your database’s copy using a large number of storage configurations.
  • Incremental backups. This type of backup is keeping and backing up only those blocks which were changed in some way since the last full backup. This backup approach requires far less storage space than the traditional one and adds more flexibility to the restoration process in case of some sort of disaster.
  • Encrypted backups. RMAN can easily encrypt your database using the integrated backup encryption capability. There’s one distinction between creating such backup on a disk and creating that same backup directly on a tape. For disk - the database in question much enable the Advanced Security Option. For tape - RMAN has to use Oracle SBT interface but there’s no need for Advanced Security Option to be enabled.
  • Block media recovery. If the amount of corrupt data is relatively small, you don’t really need to restore the entire backup to fix it - this feature is called block media recovery and can be used without taking the file itself offline, as well.

For this how-to, we'll be setting up Oracle SBT backups.

Part 1: Configure the Oracle backup and recovery plugin in Bweb

Step 1. In Bweb, configure a new fileset for the job. In the 'Plugin' tab on the fileset, select Oracle SBT.

backup oracle database

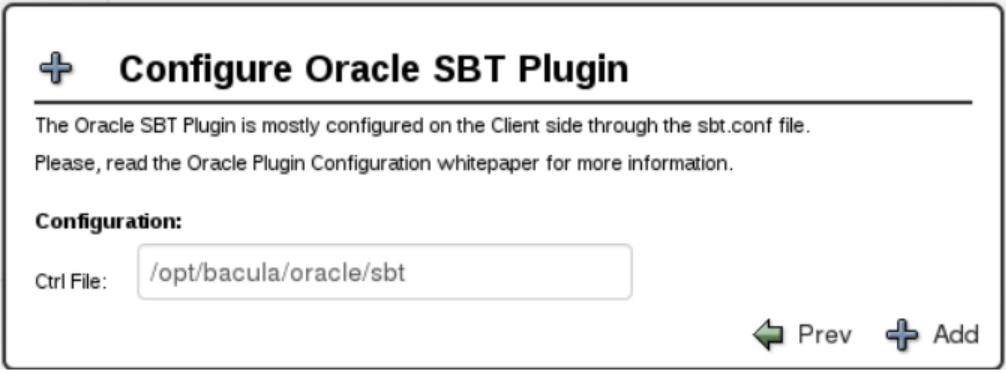

Step 2. The Oracle backup and recovery plugin is configured primarily on the client side, so in most cases no further configuration is required on in Bweb. The new fileset can be committed.

oracle backup and recovery

Step 2a: Please note the different options to backup Oracle database available if the Oracle plugin (non-SBT) is chosen. The Oracle Plugin Whitepaper covers these alternate methods in depth.

oracle backup

Part 2: Configure the Oracle Database Backup Plugin on the Oracle server

As with other database plugins, the Bacula Enterprise File Daemon and the relevant database plugin component (Oracle SBT in this case) must first be installed on the database server. This places the necessary tools for Bacula backup onto the database server. Please review the Oracle whitepaper or contact Bacula Systems support if you need help with this step.

Step 1: Install the Bacula File Daemon and the Oracle backup plugin packages

Step 2: Install the sbt library into Oracle


/opt/bacula/scripts/install-sbt-libobk.sh install

Step 3: Restart oracle

Step 4: Copy bconsole and make sure Oracle can read it:


cp /opt/bacula/bin/bconsole /opt/bacula/ oracle
cp /opt/bacula/etc/bconsole.conf /opt/bacula/oracle
chown oracle:dba /opt/bacula/oracle/bconsole*
chmod go-rxw /opt/bacula/oracle/bconsole*

Step 5: Edit /opt/bacula/etc/sbt.conf to indicate the job name, bconsole path and configuration, and client name:


client=oracle-fd
job=OracleBackup
bconsole="/opt/bacula/oracle/bconsole -n -c /opt/bacula/oracle/bconsole.conf"

Fileset and Job examples:

Below are examples of the simple fileset configured in BWeb in Part 1, and a sample job that uses this fileset. For in depth Bweb tutorials, please see the Bacula Systems video documentation:


FileSet {
Name = SBT-FileSet
Include {
Options {
Signature = MD5
}
Plugin = oracle-sbt
}
}

Job {
Name = SBT-Backup
FileSet = SBT-FileSet
Client = oracle-fd
Maximum Concurrent Jobs = 10
Messages = Standard
Pool = Default
Storage = File
}

Part 3: Test Plugin Connectivity and Run Oracle Backup:

Step 1: Test the plugin


/opt/bacula/scripts/install-sbt-libobk.sh test

Step 2: Manually run a backup through RMAN:


RUN {
ALLOCATE CHANNEL c1 DEVICE TYPE sbt;
ALLOCATE CHANNEL c2 DEVICE TYPE sbt;
ALLOCATE CHANNEL c3 DEVICE TYPE sbt;
BACKUP INCREMENTAL LEVEL 0 DATABASE plus archivelog;
}

A typical successful RMAN backup output looks like below, and is an indication that the SBT plugin is installed, correctly configured, and ready to run backups:


[oracle@centos07 ~]$ rman target /

Recovery Manager: Release 12.1.0.2.0 - Production on Thu Mar 23 11:02:22 2017

Copyright (c) 1982, 2015, Oracle and/or its affiliates. All rights reserved.

connected to target database: CENTOS07 (DBID=2213460080)

RMAN> run {

2> allocate channel c1 type sbt;

3> backup database plus archivelog;

4>}

using target database control file instead of recovery catalog

allocated channel: c1

channel c1: SID=44 device type=SBT_TAPE

channel c1: Bacula Enterprise Oracle SBT Plugin 1.0.0.7

Starting backup at 23-MAR-17

current log archived

channel c1: starting archived log backup set

channel c1: specifying archived log(s) in backup set

input archived log thread=1 sequence=23 RECID=1 STAMP=894837644
input archived log thread=1 sequence=24 RECID=2 STAMP=894882191
input archived log thread=1 sequence=25 RECID=3 STAMP=894882226
input archived log thread=1 sequence=26 RECID=4 STAMP=894924027
input archived log thread=1 sequence=27 RECID=5 STAMP=912953744
input archived log thread=1 sequence=28 RECID=6 STAMP=912955548
input archived log thread=1 sequence=29 RECID=7 STAMP=912955554
input archived log thread=1 sequence=30 RECID=8 STAMP=912955561
input archived log thread=1 sequence=31 RECID=9 STAMP=912955564
input archived log thread=1 sequence=32 RECID=10 STAMP=912964429
input archived log thread=1 sequence=33 RECID=11 STAMP=939375680
input archived log thread=1 sequence=34 RECID=12 STAMP=939380476
input archived log thread=1 sequence=35 RECID=13 STAMP=939380575

channel c1: starting piece 1 at 23-MAR-17

channel c1: finished piece 1 at 23-MAR-17

piece handle=07rvrjqv_1_1 tag=TAG20170323T110255 comment=API Version 2.0,MMS Version 1.0.0.7

channel c1: backup set complete, elapsed time: 00:00:25

Finished backup at 23-MAR-17

Starting backup at 23-MAR-17

channel c1: starting full datafile backup set

channel c1: specifying datafile(s) in backup set

input datafile file number=00001
name=/u01/app/oracle/oradata/CENTOS07/datafile/o1_mf_system_c2kyrs39_.dbf

input datafile file number=00003
name=/u01/app/oracle/oradata/CENTOS07/datafile/o1_mf_sysaux_c2kyqoql_.dbf

input datafile file number=00004
name=/u01/app/oracle/oradata/CENTOS07/datafile/o1_mf_undotbs1_c2kyt7s9_.dbf

input datafile file number=00006
name=/u01/app/oracle/oradata/CENTOS07/datafile/o1_mf_users_c2kyt6j4_.dbf

channel c1: starting piece 1 at 23-MAR-17

channel c1: finished piece 1 at 23-MAR-17

piece handle=08rvrjrp_1_1 tag=TAG20170323T110321 comment=API Version 2.0,MMS Version 1.0.0.7

channel c1: backup set complete, elapsed time: 00:00:56

channel c1: starting full datafile backup set

channel c1: specifying datafile(s) in backup set

including current control file in backup set

channel c1: starting piece 1 at 23-MAR-17

channel c1: finished piece 1 at 23-MAR-17

piece handle=09rvrjth_1_1 tag=TAG20170323T110321

comment=API Version 2.0,MMS Version 1.0.0.7

channel c1: backup set complete, elapsed time: 00:00:03

Finished backup at 23-MAR-17

Starting backup at 23-MAR-17

current log archived

channel c1: starting archived log backup set

channel c1: specifying archived log(s) in backup set

input archived log thread=1 sequence=36 RECID=14 STAMP=939380664

channel c1: starting piece 1 at 23-MAR-17 channel c1: finished piece 1 at 23-MAR-17

piece handle=0arvrjto_1_1 tag=TAG20170323T110424 comment=API Version 2.0,MMS Version 1.0.0.7

channel c1: backup set complete, elapsed time: 00:00:01

Finished backup at 23-MAR-17 released channel: c1

Oracle Database Recovery

While a backup on its own is incredibly important - it’s also worth mentioning that restoration and recovery functions are both an important part of the whole process in Oracle database backup and recovery cycle. Just having a backup with no means to restore it isn’t that much useful, too.

But first we have to cover some basics. As we said earlier, there are a large number of possible circumstances that will have you recovering your database’s backup. For example, we can list a number of hardware failures and firmware issues:

  • Block corruption;
  • Data loss;
  • User error;
  • Issues with upgrading;
  • Natural or unnatural disaster.

You’ll have to connect to recovery catalog first if you want to either restore or recover a database using RMAN. The next step is to allocate channels to either tape or disk. The purpose of recovery catalog is to provide all kinds of information about database backup or backups. You can also configure a separate control file for similar purposes. The difference between restore and recover commands is that “restore” does exactly what you’d expect - restores database files, but “recover” is somewhat different since it applies all of the changes recorded in the archived data logs.

Oracle database backup and recovery as a process is able to provide several recovery options, including:

  • Specific Point Recovery

When you’re using Oracle, the recovery process is not that complicated. You can easily restore the entire database and after that use “recover” commands to choose the specific point to which you want your database to be recovered. There are also several other options included aside from the basic complete recovery if you’re using RMAN - you can bring the state of your database to a specific point in time or you can match its condition to specific archive log.

  • Tablespaces/Datafiles/Blocks Restoration

If your database includes a lot of tablespaces - you can choose this recovery mode to limit the database downtime only to tablespace users that were using now damaged files. In general, restoring tablespaces is a bit more complicated than the usual restore database function since you can’t recover specific tablespace after the restore. That’s why a backup is advised straight after restoring those tablespaces. One more specific of using RMAN is that you’ll be able to provide both block number and datafile number, thus making the recovery process easier.

  • Data Recovery Advisor

Oracle’s service also includes a feature called Data Recovery Advisor which you can bring up if you’re having problems with one or several of your database files. This advisor is able to provide you with both the repair script based on your database and can show you how much you can recover in your current situation, as well. You can also quite easily enable provided script right after launching the advisor.

Final Thoughts on Oracle Backup and Recovery:

Because the Bacula Enterprise Oracle SBT plugin leverages RMAN for advanced backup features, some additional configuration must be done in Oracle.

Retention period:

When using RMAN SBT plugin, the backup retention defined in RMAN should match the Bacula volume or job retention.

Archive log:

In order to use the RMAN backup mode, the database must be in ARCHIVELOG mode.

Please consult the Oracle Backup whitepaper and Bacula Systems Support if you need more information, assistance, or have questions after reading this Oracle backup and recovery guide.
