Continuous Data Protection

1 Star2 Stars3 Stars4 Stars5 Stars
(59 votes, average: 4.97 out of 5)

Continuous Data Protection from Bacula Systems

Continuous Data Protection (CDP) solutions enable you to backup your data in real time at a pace that may bring increased protection and convenience to you. It automatically detects and saves each and every change made to your data, so that nothing is left overlooked. These changes can be stored locally or remotely and are readily available for recovery just when you need them.

cdp solutions

Conventional Backup Solutions

Conventional backup solutions create snapshots or images of your client computers and virtual machines at set time intervals. Although this approach has been used successfully in on-premise physical environments, it can present certain additional challenges for cloud and virtual environments:

  • Snapshot creation puts additional workload on your system. This may be taxing on your whole environment, especially on virtual machines that are resource-efficient and typically operate at 80% CPU usage. By contrast, most physical servers operate at 10-30% CPU usage.
  • In modern-day environments changes happen so rapidly, that periodic snapshots may not capture all bits of data that have changed back and forth since the latest snapshot.
  • When restoring data, not all solutions can restore single, specific files. For snapshot based backups, it may be that you can only restore the whole snapshot, not just the data you need.

Why is Continuous Data Protection Backup So Much Better?

Zero effect on Performance

Continuous backup users use the journal only when they commit to the point in time selected, avoiding the performance impact of a typical snapshot. This can make an even more significant difference when attempting to power on multiple snapshots on replica VMs.


PITR (Point-In-Time Recovery) is Journal-Based

Journal-based restore maintains a constant log of all changes made by users of applications and data.

With the changes being continuously written to the datastore, Continuous Data Protection delivers point-in-time restore to within a specific time window


Enterprise Grade Scalability

The journal can live on any datastore, where maximum size limits and warnings can be specified. This prevents the datastore from becoming full which would jeopardize replication. Using snapshots on replicated VMs offers no way of controlling the snapshot’s data volume, with the result that SLAs and efficiency become non-scalable.

Ransomware Recovery from whenever you need it

Continuous Data Protection software gives an ongoing flow of recovery checkpoints to use for restore. In the event of malicious attacks such as ransomware, data can be recovered literally in seconds before the event took place, minimizing impact to the organization and its stakeholders.


Real-Time Block-Level Replication

CDP makes use of change-block tracking to constantly replicate and write data to storage. Because continuous backup is always on, it provides significantly better RPOs than solutions that are based around snapshots.


Storage Savings

As no snapshots are created using Continuous Data Protection backup solutions, the source storage requires no extra space. Only about 7-10% of the target storage is utilized which saves significant amounts of space. This can lead to dramatic savings. Alternatively, Snapshot technology typically requires a good deal of overhead in the storage arrays, often as much as 20-30% at both the target and source

Advanced CDP Backup Solutions with Bacula

As opposed to conventional backup solutions, Bacula Enterprise CDP does not require regular snapshots of your entire system. It saves only the bits of data that have changed, which results in seamless backups that are not taxing on your resources and have no significant impact on your system’s operational workload. This approach enables you to perform granular recovery of only those bits of data that you actually need to restore. Granular restore can be crucial for predominantly virtual environments, where recovery point objectives (RPOs) are tight and recovery time objectives (RTOs) are very short.

Continuous Data Protection Backup with Bacula Enterprise

Conventional Backup Bacula Enterprise CDP
Full Backup yes yes
Differential Backup varies yes
Incremental Backup varies yes
Granular Backup and Restore no yes
Backup Scheduling yes yes
Restore time minutes to hours seconds to minutes
Price additional cost Free*

Free* – For Bacula Enterprise customers

How does CDP Backup from Bacula work?

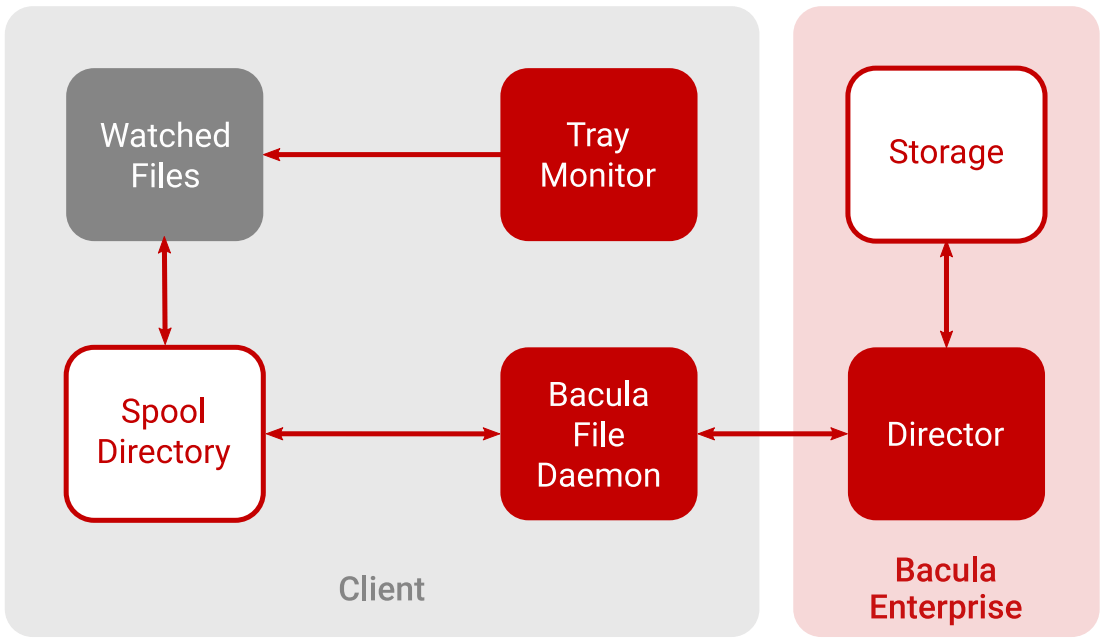

Bacula’s continuous data protection software includes two components:

cdp software details

Tray Monitor: A CDP backup client application that monitors and scrapes any changes to your data in the locations you define.

Bacula File Daemon plugin: A plugin that saves and stores these changes in your Bacula Enterprise environment.

To set up Continuous Data Protection:

  1. Use the Tray Monitor on your client computer, server, or virtual machine to define the folders that you would like to watch for changes.
  2. Once the Tray Monitor detects a change in one of the watched files, it copies this change to the Spool Directory that stores it as a new version of the watched bit of data.
  3. When you need to revert your data to one of the previous versions, you can do it right away. If the Spool Directory is available locally, no connection with Bacula Enterprise Director is required.
  4. In addition, the Bacula File Daemon plugin syncs new changes with Bacula Enterprise Director and saves them in Bacula Enterprise Storage at regular time intervals that you can customize as you need. This sync-up does not affect the data in the Spool Directory – it is still available to you at any time.

CDP Availability for Bacula Clients

Continuous Data Protection is available at no extra cost for all Bacula Enterprise customers and can be used on client computers and virtual machines based on Windows, Linux, Mac OS, or any other supported platforms.

Use Case of CDP

A medium-sized hosting provider operating in Greece and the Balkan states needed an always up-to-date backup, as well as the ability to dial back to the right moment in time before an event – such as data corruption – had happened. Five years ago, their hosting environment consisted of approximately 70% physical servers and 30% virtual machines. The company had been using traditional backup solution and methods that provided full and differential backups. This had initially been enough for its needs. Now, however, the company’s technicians were running out of time to complete regular backups.

In addition, the company’s difficulties were being exacerbated by a growth in data volume. As the company was growing successfully, this data growth was expected to continue well into the future, and any solution would have to be ‘future proof’ with this aspect in mind.

It became clear that the company needed to move to a solution that was modern, efficient and fast, and that would allow the user or administrator to restore data to any point in time. After further research, the company realized it would be highly advantageous to employ a true CDP software solution that would detect when a file was changed and copy it into a local spool area. The company needed files to be available for immediate recovery locally, and the ability to automatically capture and track data modifications, saving every version of user-created data locally or at a target repository. However, in recent years, as the company moved towards virtual infrastructure, the proportion reversed: now their environment is mostly made up of virtual machines and servers (78%) with physical servers making only 22%.

As conventional backup and restore operations are highly resource – and time-consuming, the organization started looking for a CDP system that they could use instead or together with their existing backup infrastructure.

After a careful comparison of all alternative CDP solutions, the company decided to use Bacula Enterprise, benefiting from its built-in Continuous Data Protection capability. Bacula closely integrates highly effective CDP into a comprehensive, enterprise-grade backup and recovery environment, which presents an advantage to system administrators and users. Bacula’s approach is to be as platform-agnostic as possible, with no particular file system requirements. Among the many advantages of this philosophy, one of them is the ability to significantly reduce the need to rely on snapshots.
