Back Up and Recover DB2 Databases Online and Offline with Bacula Enterprise

Full, Incremental, and Differential DB2 Backup and Recovery

DB2 is one of the oldest relational database management systems still widely deployed in enterprise environments. Financial services and government organizations depend on it heavily because neither sector can tolerate transaction failures or unplanned downtime. Large DB2 deployments frequently span multiple instances with dozens of databases under a single administrator, and the consequences of a failed or incomplete backup in those environments can be adverse, with critical data loss across multiple workloads and exposure to compliance penalties.

A file-level backup and recovery utility cannot protect a running DB2 database effectively because it copies data at the filesystem level without any awareness of what DB2 is doing internally. As a result, the snapshot is inconsistent and the database cannot be cleanly restored.

The Bacula Enterprise DB2 plugin prevents data loss and supports disaster recovery across active DB2 environments by routing data through a Unix named pipe directly to DB2’s own backup and restore API. The plugin reads each database’s configuration automatically and determines whether online or offline backup is possible. As such, the entire process requires no manual intervention. For databases configured to support online backup, the plugin runs full, incremental, and differential backups while the database stays online and fully in use. What follows is a detailed breakdown of Bacula’s DB2 plugin and the full range of features Bacula offers enterprises.



Download Trial

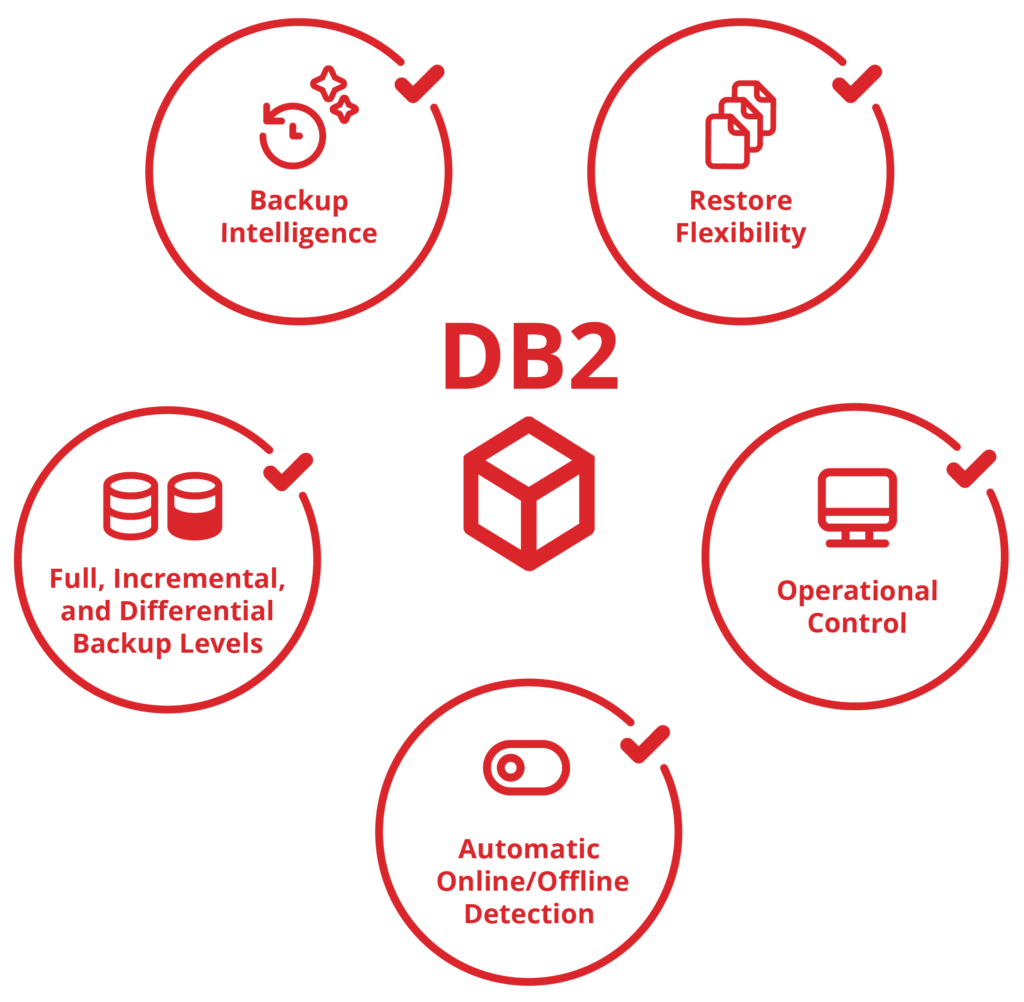

Key Features of Bacula’s DB2 Plugin

Backup Intelligence

  • Automatic Online/Offline Detection – The plugin reads each database’s TRACKMOD and LOGARCHMETH1 settings at job time and determines whether an online or offline backup is possible (no manual configuration needed).
  • Full, Incremental, and Differential Backup Levels – DB2 plugin runs all three job levels natively and captures only altered data, reducing backup windows on Incremental and Differential runs.
  • Automatic Schema Capture – The plugin extracts and stores the database schema as a separate file, which gives a recoverable DDL snapshot alongside the data image.
  • Docker Support – The plugin communicates with DB2 running inside a Docker container by wrapping all db2 commands with a configurable bin_dir prefix to execute the backup job inside the container’s environment without any changes to the plugin configuration required.

Restore Flexibility

  • Original or New Database Restore – The where parameter lets administrators restore a database under its original name or into a new database created automatically by the plugin during the restore job.
  • Point-in-Time Incremental Restore (PITR) – The plugin applies full, differential, and incremental images in the correct sequence automatically, with the final image extracting database logs to let administrators run ROLLFORWARD to any required point in time.
  • Directory Dump for Manual Restore – Setting the where parameter to a directory path restores raw DB2 image files to disk, allowing administrators to use native db2 restore commands directly for granular or partial recovery.

Operational Control

  • Automatic Connection Termination –For offline backups, the plugin terminates all active sessions, deactivates the database, runs the backup, and restores it to service automatically, with no manual intervention required.
  • Named Pipe Data Transfer – Data moves through a Unix named pipe instead of the filesystem to avoid writing temporary files to disk, saving local storage and speeding up the transfer.
  • Glob Pattern Database Selection – The database parameter accepts glob expressions to select which databases in an instance to back up, and raises an error automatically if the pattern matches nothing.
  • Configurable Error Handling – The abort_on_error parameter controls whether the plugin stops the entire job on a serious error or logs the error and continues backing up remaining databases.

Bacula Enterprise DB2 Plugin – All Features

Backup Capabilities

  • Automatic Backup Mode Detection – The plugin reads each database’s TRACKMOD and LOGARCHMETH1 settings at job time to determine whether online or offline backup is possible, and adjusts all job parameters automatically without any manual configuration.
  • Online Backup at Full, Incremental, and Differential Levels – For databases configured with TRACKMOD and LOGARCHMETH1, the plugin runs full, incremental, and differential backups while the database stays online and fully in use.
  • Offline Backup with Automatic Lifecycle Management – For databases that do not support online backup, the plugin terminates all active sessions, deactivates the database, runs the backup, and restores it to service automatically without any manual intervention.
  • Automatic Schema Capture – The plugin extracts and stores the database schema as a separate DDL file to give administrators a recoverable schema snapshot on every run.
  • Multi-Database Instance Backup – The database parameter accepts glob expressions to select which databases across an instance to include in the backup job, and raises an error automatically if the pattern matches nothing.
  • Docker-Containerized DB2 Backup – The plugin also communicates with DB2 running inside a Docker container by wrapping all db2 commands with a configurable bin_dir prefix to execute backup jobs inside the container’s environment.
  • Named Pipe Data Transfer – Data moves through a Unix named pipe to avoid writing temporary files to disk, which saves local storage and speeds up the transfer.
  • Backup Timestamp Tracking – The DB2 backup tool records the timestamp of each backup image and uses it to coordinate incremental and differential restore sequencing across multiple job runs.

Restore Capabilities

  • Single Full Database Restore – The plugin restores a full database backup by selecting the data.sql.* file from the Bacula catalog, and restores it under the original database name or a new name specified via the where parameter.
  • New Database Creation on Restore – When the where parameter is set to a valid database name, the plugin creates the target database automatically and restores the data into it, without having the administrator to provision the database manually beforehand.
  • Point-in-Time Incremental Restore (PITR) – The plugin applies full, differential, and incremental images in the correct sequence automatically, with the final image extracting database logs to let administrators run ROLLFORWARD to any required point in time.
  • Duplicate Database Protection – When the replace parameter is set to Never, the plugin checks the existing database list before the restore begins and aborts the job automatically if the target database already exists.
  • Restore Options Passthrough – The restore_options, rollforward_options, and logtarget parameters pass arguments directly to the underlying db2 restore and db2 rollforward commands, granting administrators full control over restore behavior without modifying the plugin itself.
  • Directory Dump for Manual Restore – Setting the where parameter to a directory path restores raw DB2 image files to disk to let administrators use native db2 restore commands directly for granular or partial recovery.
  • Instance-Targeted Restore – The instance parameter validates the target DB2 instance before the restore begins, and skips the plugin command if the instance on the system does not match the configured value.

Operational Features

  • Configurable Error Handling – The abort_on_error parameter controls whether the plugin stops the entire job immediately on a serious error or logs the error and continues backing up remaining databases in the instance.
  • Configurable Command Timeout – The timeout parameter sets the maximum number of seconds the plugin waits for db2 commands to complete or for a DB2 connection to be established during a backup, with a default of 120 seconds.
  • Shared Control Directory – The ctl_dir parameter defines a directory accessible to both the DB2 service and the Bacula File Daemon where the plugin writes dynamic command scripts at job time, with permissions configurable to the DB2 instance user for security.
  • User-Level Command Execution – The unix_user and use_sudo parameters let administrators run all db2 commands under a specific OS account instead of the default Bacula File Daemon root account, without modifying the plugin itself.
  • Customization Script Interface – The user_config_dir parameter lets administrators override plugin variables at job time by placing custom shell scripts in a designated directory, so native DB2 options like COMPRESS or DEDUP_DEVICE can be applied without touching the plugin configuration.
  • Deduplication Storage Optimization – Setting DEDUP_DEVICE in the customization script optimizes the format of backup images for Aligned device or Global Endpoint Deduplication storage, in turn reducing storage consumption on deduplication-capable targets.
  • Full Job Log Reporting – The plugin reports every step of the backup and restore process to the Bacula job log, including db2 command output, connection status, and error messages, with administrators getting a complete audit trail for every job.

What Every Bacula Enterprise Deployment Includes

The DB2 plugin runs inside Bacula Enterprise, which means every installation comes with a full set of platform-wide backup and recovery capabilities beyond what the plugin itself provides. The features below are available across all Bacula Enterprise deployments, regardless of the environment or workload.

Backup Storage and Cost Control

Bacula Enterprise gives administrators direct control over storage costs through data reduction and flexible destination routing.

  • Block-Level Deduplication – Any data block that appears more than once across the backup catalog is written to storage only once. Storage consumption drops without any change to backup policy or schedule.
  • Adaptive Compression – Compression algorithms are configurable per job. Administrators tune compression based on data type and available resources.
  • Multiple Storage Target Types – Backups write to local disk, NAS, SAN, tape libraries, cloud object storage including S3, Azure, and Google Cloud, or any combination within a single policy.
  • S3-Compatible Object Storage – Bacula connects to any S3-compatible provider for long-term retention without vendor lock-in.
  • Tiered Storage Workflows – Backup data can be configured to move across storage tiers automatically as it ages. Frequently accessed recovery points stay on fast storage and older data shifts to lower-cost destinations.
  • Incremental Forever – After an initial full backup, every subsequent job captures only what has changed. Recurring full backup windows are no longer necessary.
  • Bandwidth-Conscious Transfers – Only modified data crosses the network between backup runs. Production network load stays low without manual throttling or scheduling workarounds.

Backup Security and Compliance

Security and regulatory compliance are built into every layer of the platform, from data transport and storage encryption to access control and audit logging.

  • AES-256 Encryption – AES-256 encryption covers the full data path from source client to final storage destination. Key management is configurable to fit organizational security policies.
  • Immutable Backup Copies – WORM-compatible storage locks backup data against modification or deletion once written. Ransomware and insider threats have no path to the recovery point.
  • Granular Access Controls – User permissions scope to specific jobs, restore workflows, and management functions. Each administrator accesses only what their role requires.
  • Complete Activity Auditing – Every backup, restore, and configuration change is logged with user identity and timestamp. Compliance and security teams get a full, unbroken audit trail.
  • Regulatory Framework Support – Platform controls map to GDPR, HIPAA, and SOC 2 requirements through encryption, configurable retention policies, and detailed audit logs.
  • Privacy-Preserving Architectures – Zero-knowledge deployment options allow backup infrastructure to run without granting administrators any visibility into the protected data.

Backup Management and Administration

Two complementary interfaces and a full suite of management tools provide visibility and control across all backup operations.

  • Dual Interface – BWeb provides a graphical console for day-to-day job management and monitoring. Bconsole (user agent) gives operators full command-line control for scripting, automation, and advanced configuration.
  • Scalability Without Limits – The same platform architecture manages environments from a handful of servers to deployments numbering in the thousands, all under a single management plane.
  • Automatic Resource Discovery – The platform scans infrastructure to identify and catalog backup targets automatically. Protection coverage stays current as the environment grows.
  • Detailed Reporting – Scheduled reports cover job outcomes, capacity trends, compliance status, and operational performance on a defined cadence.
  • External System Integration – Bacula connects to monitoring tools, IT ticketing systems, and directory services, without any mandatory custom development.

Multi-Environment Backup Coverage

Physical servers, virtual machines, containers, and cloud infrastructure all fall within a single unified backup strategy.

  • Multi-Platform Virtualization – Native integration for VMware vSphere, Hyper-V, KVM, Red Hat Virtualization, Xen, Azure VM, Proxmox, and Nutanix AHV with consistent policy application across all platforms.
  • Physical and Virtual Convergence – Physical servers, workstations, and virtual machines are protected through the same management interface with unified backup policies.
  • Container and Cloud-Native Support – Full protection for Docker, Kubernetes, and OpenShift environments with persistent volume backups and application-consistent snapshots.
  • Multi-Cloud Storage Integration – Native support for public, private, and hybrid cloud storage including S3, S3-IA, Azure, Google Cloud, Oracle Cloud, and Glacier interfaces with Minimal Restore Cost (MRC) functionality
  • Database and Application Integration – Hot backup support for Oracle, SQL Server, MySQL, PostgreSQL, SAP HANA, and other mission-critical applications with full transactional consistency.

Predictable Backup Licensing

Bacula Enterprise software licensing is linked to environment size, not data volume. Therefore, DB2 database growth will not increase licensing costs.

  • Volume-Independent Licensing – Growing backup capacity does not increase license fees. Data protection costs stay flat as data volumes expand.
  • Predictable Cost Structure – A fixed pricing model lets teams plan infrastructure budgets without accounting for variable costs tied to storage growth or workload changes.
  • Workload-Agnostic Pricing – Database sizes, server counts, and storage volumes have no effect on licensing costs.
  • Large-Scale Cost Benefits – Organizations protecting large or rapidly growing DB2 environments pay the same license fee regardless of how much data they add. The cost advantage over capacity-priced competitors grows as data volumes increase.

Recovery and Business Continuity

Bacula Enterprise offers recovery paths for all restore scenarios, from a single database restore to a full site rebuild.

  • System-Level Bare Metal Restore – Bacula Enterprise recovers a complete server from scratch including the operating system, applications, configuration, and data without requiring a prior manual installation.
  • Cross-Platform Data Movement – Backup data can be recovered to a different operating system than its source. Teams have options when like-for-like hardware is unavailable or a migration is underway.
  • Geographic Backup Replication – Backup sets are copied to geographically separate storage locations. A site-wide outage does not take recovery points down with it.
  • Frequent Backup Scheduling – The potential data loss window shrinks to minutes.
  • Automated Restore Validation – Recoverability is confirmed through automated testing without administrator involvement or a separate validation process.

FAQs

Does DB2 support incremental and differential backups?

Yes. DB2 supports full, incremental, and differential backup levels natively for databases configured with TRACKMOD and LOGARCHMETH1. The Bacula Enterprise DB2 plugin runs all three levels automatically, and captures only altered data on incremental and differential runs to reduce backup windows and storage consumption.

How does Point-in-Time Recovery work in DB2?

DB2 point-in-time recovery requires restoring the newest backup image first, then applying all other images in sequence, and finally running the ROLLFORWARD command to replay transaction logs to the required moment. The Bacula Enterprise DB2 plugin automates the image sequencing step, applying full, differential, and incremental images in the correct order automatically. The administrator runs ROLLFORWARD DATABASE to END OF LOGS AND COMPLETE to complete the recovery.

How does the Bacula Enterprise DB2 plugin interface with native DB2 backup APIs?

The plugin calls the DB2 backup and restore API directly through dynamically generated shell scripts, and transfers data through a Unix named pipe. As such, the plugin operates within DB2’s own backup framework, which is what makes the resulting backup consistent and restorable.

How does the Bacula DB2 plugin automate the transition between online and offline backups?

The plugin reads each database’s configuration at job time and determines whether online or offline backup is possible. For databases that support online backup, it runs the job while the database stays active. For databases that do not, it will QUIESCE DATABASE IMMEDIATE FORCE CONNECTIONS to terminate all active sessions, deactivates the database, runs the backup, then reactivates it automatically.

Does the Bacula DB2 plugin support true incremental and differential backups?

Yes, for databases configured with TRACKMOD and LOGARCHMETH1.

Does the Bacula DB2 plugin support databases deployed inside Docker containers?

Yes. The plugin communicates with a DB2 instance running inside a Docker container by using the bin_dir parameter to wrap all db2 commands with a docker exec prefix. The database directory must be shared between the host and the container via a Docker volume mount so the plugin can write its control files to a path accessible from both sides.

How do you restore a DB2 database to a different name or a new host using Bacula?

To restore to a different database name, set the where parameter to the new name during the restore job. The name must consist only of alphanumeric characters and underscores. Bacula creates the target database automatically and restores the data into it. For restore to a different host, use the instance and unix_user parameters to target the correct DB2 instance on the destination server.
